Erkodent

Erkodent - Erkodur-al thermoforming foils for Aligners

Erkodent - Erkodur-al thermoforming foils for Aligners

Regular price RM205.00 MYR
Regular price Sale price RM205.00 MYR
Sale Sold out
Shipping calculated at checkout.
Size
Thickness & Packaging

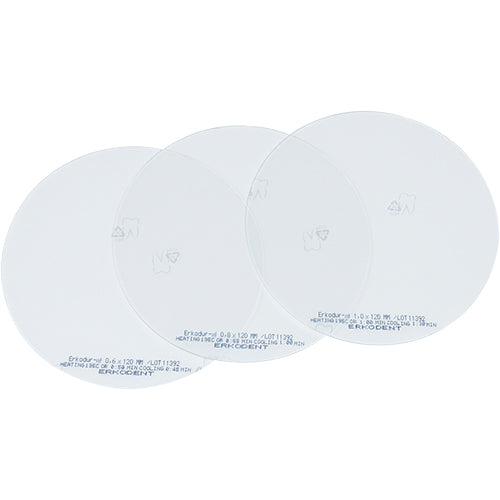

Erkodent - Erkodur-al thermoforming foils, clear transparent,

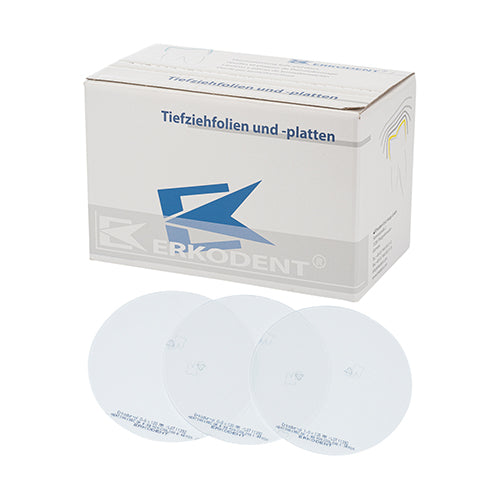

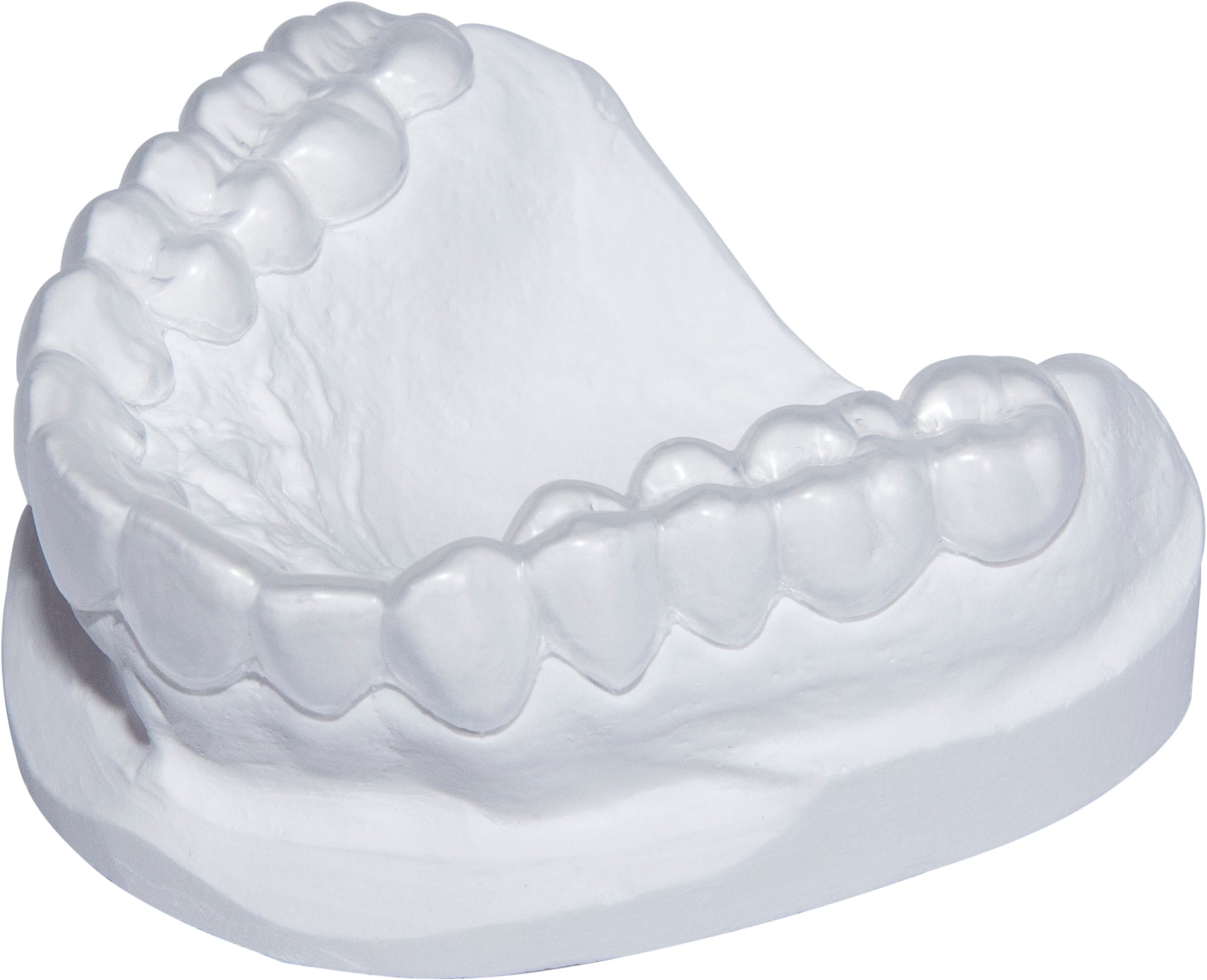

Tough-elastic-hard, break-resistant, with excellent dimensional stability. Made of copolyester with applied insulating film. For the fabrication of aligners, corrective splints and retainers. Compared to the proven Erkodur thermoforming foils, the material is approx. 35 % softer with a correspondingly lower initial force and a reduced feeling of tension during insertion. Due to the very flat memory loss curve, the effective force lasts comparatively longer. The result is an effective but also gentle correction. Packed in an aluminium bag. Medical devices Class I.
Physical data:
  • Flexural strength 59 MPa
  • Tensile strength 41 MPa
  • Notched impact strength 93 kJ/m²
  • Modulus of elasticity 1462 MPa
  • Yield stress 43 MPa
  • Elongation at break 179 %
  • Density 1.19 g/cm³
  • Water absorption after 24 h 0.5 %
  • Temperature resistance 85 °C
  • Softening temperature according to Vicat 102 °C
  • Glass transition temperature 110 °C.

Clear transparent material
Made in Germany.
