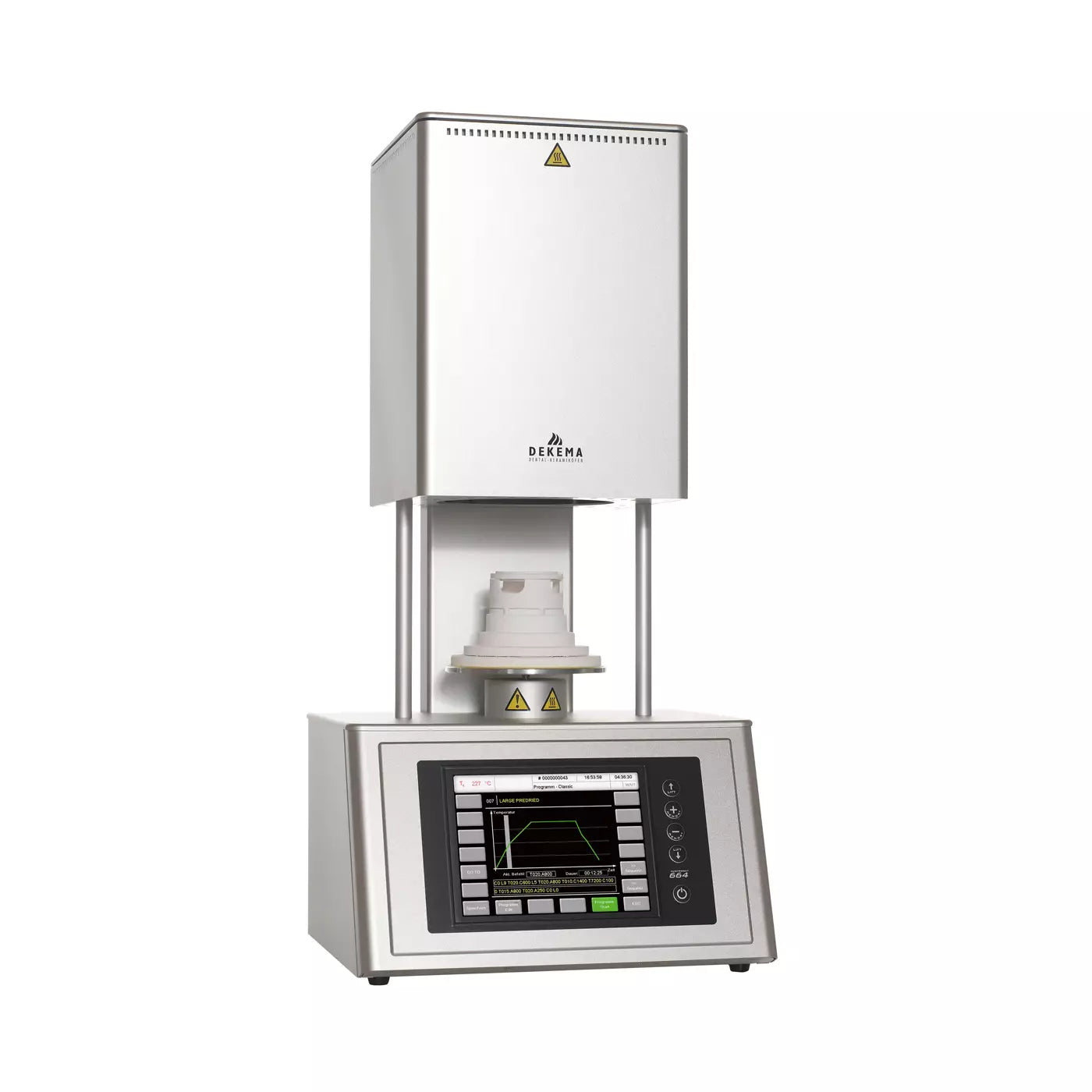

DEKEMA - AUSTROMAT 664 High Temperature Sintering Furnace

DEKEMA - AUSTROMAT 664 High Temperature Sintering Furnace

Regular price RM55,000.00 MYR
Regular price Sale price RM55,000.00 MYR
Sale Sold out
Shipping calculated at checkout.

DEKEMA - AUSTROMAT 664 High Temperature Sintering Furnace

For sintering under atmosphere up to 1530 °C in one level up to ø 65 mm. Up to 40 units and max. six-pontic bridges. With 7.5 inch colour touchscreen. Housing made of aluminium, silver anodised.

Advantages:
  • Short sintering cycles;
  • Two resistant, durable SiC heating elements do not discolour the sintered material;
  • Very homogeneous temperature distribution controlled by a Pt/Pt Rh thermocouple;
  • Firing chamber made of high-purity materials ensures a clean atmosphere;
  • Large, high-resolution touchscreen with intuitive operation;
  • Soft-Touch lifting function;
  • Autodry function for precise drying as well as very fast and targeted heating and cooling;
  • USB interfaces for easy data transfer, software update etc.
Technical data:
    38.3 x 34.3 x 78.0 cm; 230 V, 50/60 Hz; power consumption max. 2000 W; firing temperature max. 1530 °C; SiC heating; interfaces USB; 21 kg.
Delivery includes:
    Austromat 664 complete with firing table; power cable; sintering ring; sintering plate; temperature calibration set and furnace forceps.
